제품 세부 정보

Created with Pixso. Created with Pixso. 상품 Created with Pixso.
전기 모터 베어링
Created with Pixso. Deep Groove Ball Bearing, 627-2RS Model 7mm ID 22mm OD 7mm Thick, Chrome Steel Double Sealed Bearings - (Applications: for Motor Skateboards Roller Wheels)

Deep Groove Ball Bearing, 627-2RS Model 7mm ID 22mm OD 7mm Thick, Chrome Steel Double Sealed Bearings - (Applications: for Motor Skateboards Roller Wheels)

브랜드 이름: BUGAO
모델 번호: 627-2rs
MOQ: 협상 가능
가격: Negociatable
배달 시간: 3-7 일
지불 조건: L/C, T/T, Western Union, PayPal
자세한 정보
원래 장소:
닝보, 중국
인증:
ISO9001:2015
재료:
베어링 스틸/스테인레스 스틸/세라믹
진동 레벨:
V1 V2 V3 V4
소음 수준:
Z1 Z2 Z3 Z4
정도:
P0 P6 P5 P4
분리되었습니다:
분리되지 않았습니다
정렬:
비 정렬
연속 수:
단일 행
매끄럽게 하기:
그리스 또는 오일
자격증:
ISO9001 : 2015
샘플:
이용할수 있는
로드 방향:
방사형 방향
MOQ:
모델에 따라 다릅니다
포장 세부 사항:
튜브, 상자, 상자, 팔레트
공급 능력:
3000000/개월
제품 설명

Basic Parameters

  • Model:‌ 627 RS (a deep groove ball bearing with rubber seals on both sides)‌

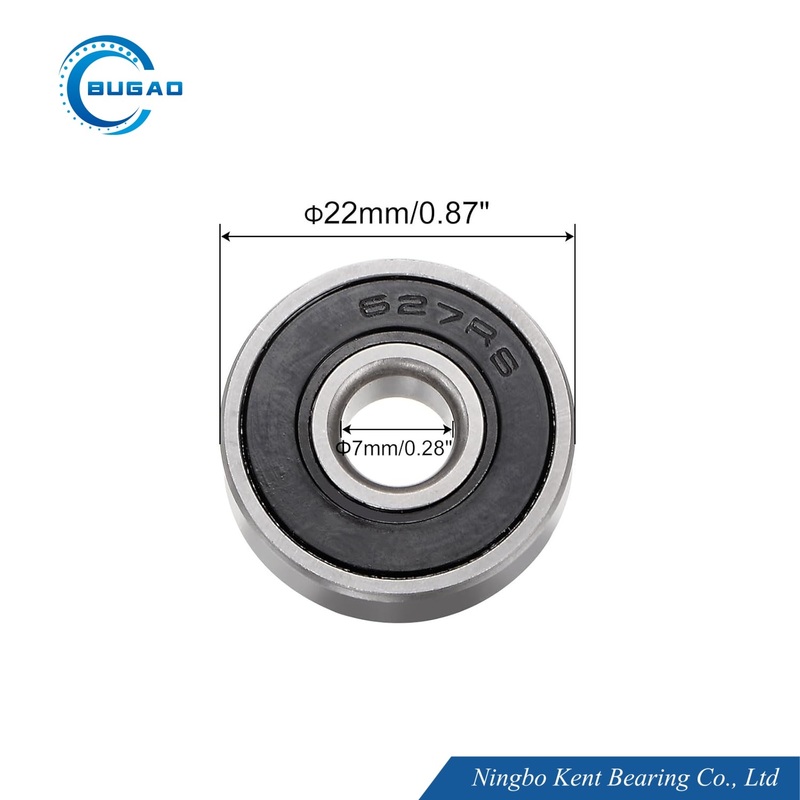

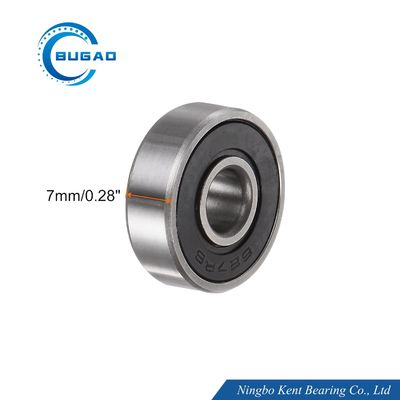

  • Dimensions (d x D x B):‌ 7 mm (inner diameter) x 22 mm (outer diameter) x 7 mm (width)‌

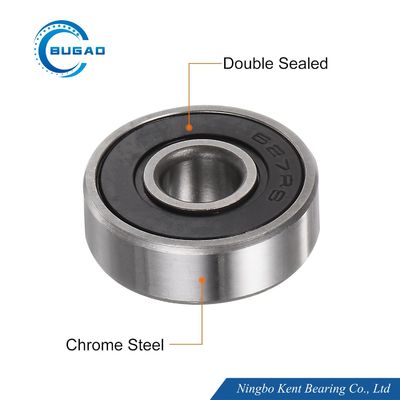

  • Seal Type:‌ RS (rubber seals on both sides, providing protection against dust and contaminants)‌

Speed Ratings

  • Reference Speed (Open Type):‌ 70,000 rpm‌
  • Reference Speed (Sealed Type):‌ 28,000 rpm (for RS seals)‌
  • Limiting Speed (Grease Lubrication):‌ 9,200 rpm (for similar bearings, as a reference)‌
  • Limiting Speed (Oil Lubrication):‌ 11,000 rpm (for similar bearings, as a reference)‌

Load Ratings

  • Dynamic Load Rating (Cr):‌ 1.37 kN (1370 N)‌
  • Static Load Rating (C0r):‌ 0.335 kN (335 N)‌

Product Characteristics

  • Seals:‌ RS seals provide effective protection against dust and moisture, extending bearing life in harsh environments‌
  • Lubrication:‌ Pre-lubricated with grease for smooth operation‌
  • Material:‌ Typically made of chrome steel (high load capacity, low noise) or stainless steel (corrosion-resistant)‌.
  • Precision:‌ Common precision level is ABEC 3, suitable for general applications‌
    .

Application Range

  • Typical Uses:‌ Precision instruments, small motors, medical devices, optical equipment, and other applications requiring low noise, low friction, and compact size‌.
  • Load Suitability:‌ Designed for light to moderate radial and thrust loads, not suitable for heavy-duty applications‌.
  •
